SoC Features:
ZYNQ XC7Z020-1CLG400C
650MHz dual-core Cortex-A9 processor
DDR3 memory controller with 8 DMA channels and 4 high performance AXI3 slave ports
High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
Low-bandwidth peripheral controller: SPI, UART, CAN, I2C
Programmable from JTAG, Quad-SPI flash, and microSD card
Programmable logic equivalent to Artix-7 FPGA
13,300 logic slices, each with four 6-input LUTs and 8 flip-flops
630 KB of fast block RAM
4 clock management tiles, each with a phase-locked loop (PLL) and mixed-mode clock manager (MMCM)
220 DSP slices
On-chip analog-to-digital converter (XADC)
Memory:
512 MB DDR3 with 16-bit bus @ 525 MHz (1050 MT/s)
16MB Quad-SPI Flash with factory programmed globally unique identifier (48-bit EUI-48/64™ compatible).
MicroSD slot
Power:
Powered from USB or any 7V-15V source (see recommended products)
USB and Ethernet:
USB-JTAG Programming circuitry
USB-UART bridge
USB OTG PHY (supports host only)
Gigabit Ethernet PHY
Audio and Video:
Electret microphone with pulse density modulated (PDM) output
3.5mm mono audio output jack, pulse-width modulated (PWM) format
HDMI sink port (input)
HDMI source port (output)
Switches, push-buttons, and LEDs:
4 push-buttons
2 slide switches
4 LEDs
2 RGB LEDs

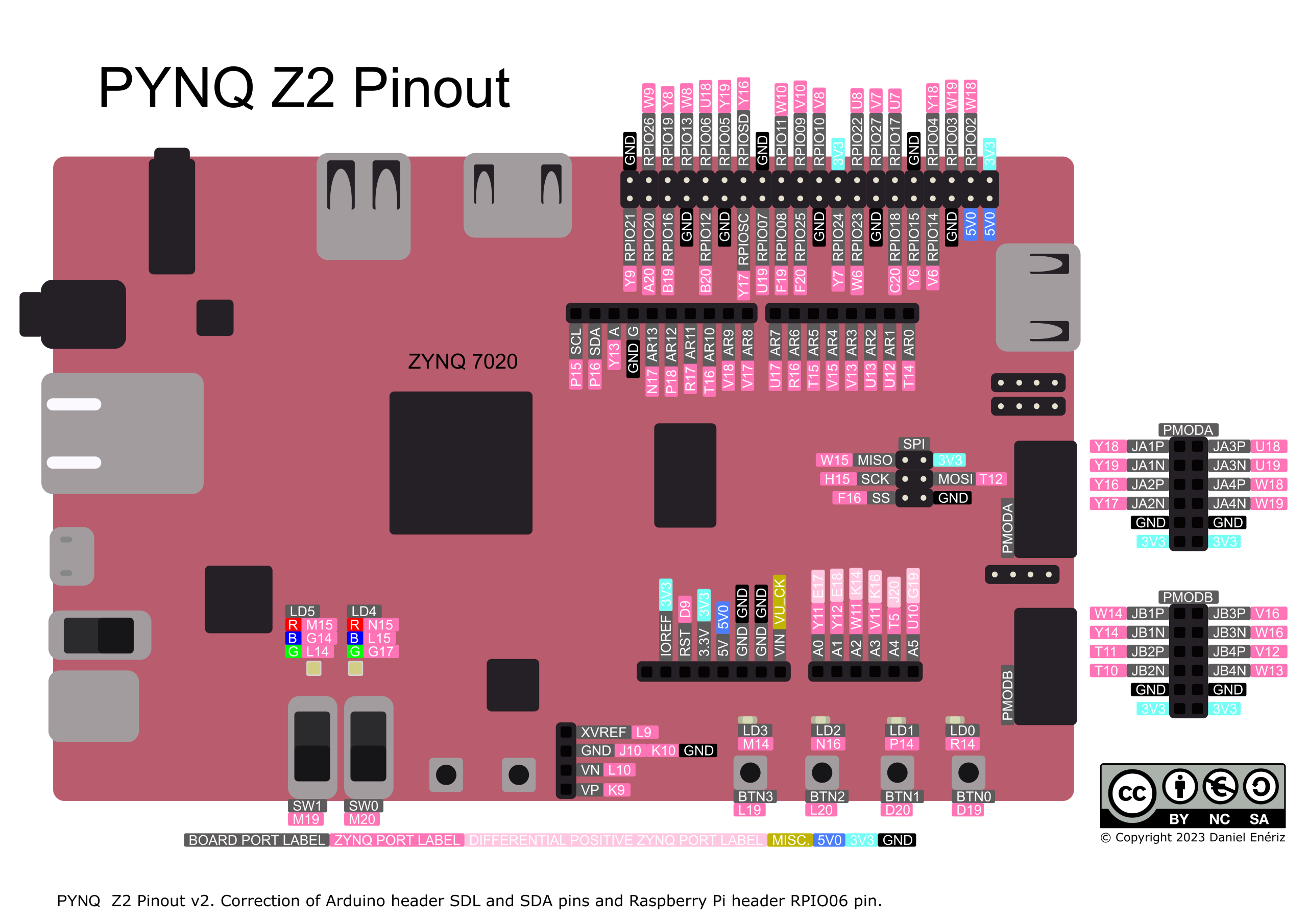

Expansion Connectors:
Two standard Pmod ports
16 Total FPGA I/O
Arduino/chipKIT Shield connector
49 Total FPGA I/O
6 Single-ended 0-3.3V Analog inputs to XADC
4 Differential 0-1.0V Analog inputs to XADC
